ECE 118-R compliant antennas for passenger vehicle applications

Written by EAD Admin on 12th February 2020. Posted in News.

ECE 118-R compliant antennas are now available from EAD for passenger vehicle applications. The ECE-R 118 is a directive which relates to the combustion behaviour of materials used in these applications.

The range of EAD low profile multi-port puck antennas, for example, the CMG– MIMO LTE + GNSS, CMO– MIMO LTE, CLWG – 1 x LTE, 1 x WiFi 1 x GNSSand C2LW MIMO LTE + WiFi as well as the ultra small Button LTE antenna can now be supplied with an ECE 118-R compliant cable.

Ideal for bus and transport applications where a durable, multi-port and compact antenna is required, our ECE 118-R antennas offer an effective answer to MIMO antenna requirements.

For more information and quotation of ECE 118-R antennas, please contact us.

LPA420 UHF antenna low profile external mount

Written by EAD Admin on 23rd September 2019. Posted in VHF/UHF Antennas.

The LPA420 UHF antenna from Sirio Antenne is an outdoor-mounted, low profile solution for severely height-restricted applications where a compact antenna is not only desirable, but necessary. This solution is tuneable from 420 MHz to 470 MHz.The bandwidth of this antenna is approximately 2.5% of the centre frequency.

The radome of the LPA420 UHF antenna is weatherproof to ensure long life.The radiation pattern of this antenna is omnidirectional and the antenna is vertically polarized.

The optimum RF performance is achieved when the antenna is fitted to a metallic ground plane or roof l/2 a wavelength square. The antenna is fed by an cable exiting the underside of the unit via a rubber grommet. As standard, it is fed by a 1M cable and BNC-Male connector. Using RF195 and RF240 cable assemblies, you can extend the reach of the cable.

A 380-430 MHz version is also available, the model number for that one is LPA380.

For pricing and availability, please contact us.

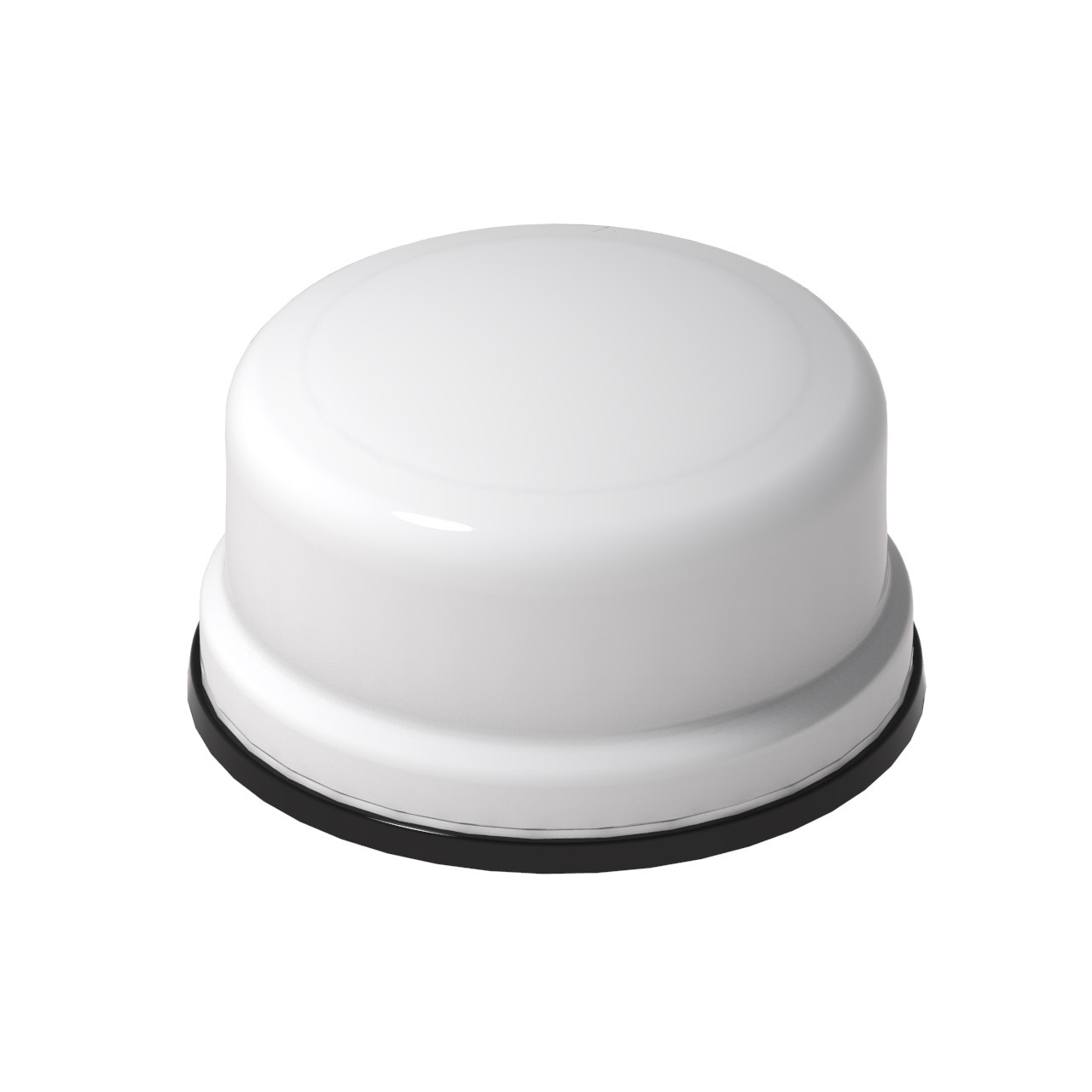

LPO antenna enhanced supporting 450 MHz

Written by EAD Admin on 8th October 2018. Posted in News.

The EAD LPO antenna enhanced supporting 450 MHz for LTE 450 applications is now available. With 2 x LTE elements and 2 x WiFi elements, the LPO45727 is ideal for running 700-2700 MHz LTE alongside LTE 450 services.

EAD has used the modular LPO platform to bring this new offering to market. It is a compact design for a multiband antenna solution and is through-hole mount for permanent installation. The LPO has a gasket underneath for an IP67 waterproof deployment and is fed by 4 cables from underneath.

An alternative 450 MHz antenna is our VLP4.

For more information on the LPO45727, please contact us.

If you require a variation of the LPO antenna, please contact us to see if we can develop it for you.

MP-2LG MIMO LTE GNSS Magnetic Antenna

Written by EAD Admin on 27th February 2018. Posted in 5G & LTE/4G Antennas, GPS & GNSS Antennas.

The MP-2L is a MIMO LTE GNSS Magnetic Antenna part of the EAD’s Magnetic Puck range. Based on the CPx antenna radome, the MP-2L is a low profile puck antenna with a high pull-strength magnet in the base of the antenna. This version has 2 x LTE antenna elements and an active GPS/GLONASS element making it ideal for mobile LTE applications to be installed on vehicle roofs and remote LTE-enabled systems such as wireless CCTV.

The MP-2LG MIMO LTE GNSS magnetic antenna is part of the MP Magnetic Puck antenna range including the MP-2L (2 x LTE) and the MP-LWG (1 x LTE, 1 x WiFi, 1 x GNSS).

A permanent mount version of this antenna is also available called the CMG.
