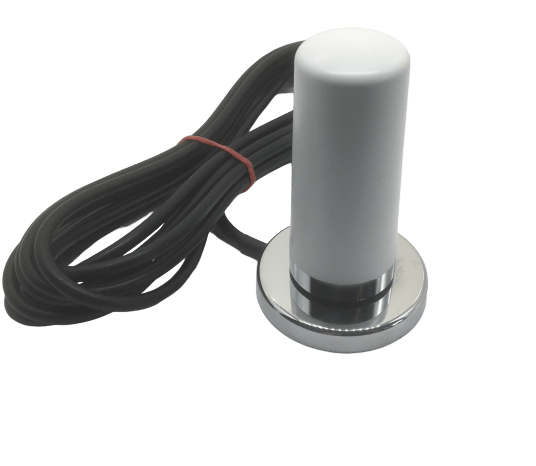

The LTE-HIGAIN-MAG-BLK-V2 is a high gain magnetic mount antenna supporting 4G, 5G, LTE, 3G and GSM frequency bands. Covering all global LTE bands including 2600 MHz (Europe) and 700 MHz (North America) and also the 3400-3800 MHz 4G band, the LTE-HIGAIN-MAG is a robust low profile antenna with a high strength magnetic mount. It is based on the LP6T00/3800NMO from Pulse
It is supplied with approx 4M of cable as standard and is terminated in a SMA-Male connector.
This antenna should be mounted onto a metal surface for optimum performance. Ideal surfaces would be the metal roof of a vehicle or narrowboat, a metal-based cabinet or kiosk or other reasonably-sized metal surface.
The LTE-HIGAIN-MAG-BLK-V2 can be ordered via the Connex Webshop.
For an alternative MIMO low profile magnetic antenna, please check out the MP-2L.
ELECTRICAL SPECIFICATIONS
Antenna type Monopole, Measured on Ø1016mm (40”) ground plane
Frequency 617-960/1710-2170/2300-2700/3400-3800 MHz
Nominal Impedance 50 Ohm
VSWR (617-960/1710-3800) 3:1/2.5:1
Average peak gain (617-960/1710-2170/2300-2700/3400-3800) 3.9/5.3/5.4/4.7 dBi
Average efficiency (617-960/1710-2170/2300-2700/3400-3800) 83/82/88/72 %
Radiation Pattern Omni
HPBW Vertical Plane (617-960/1710-2170/2300-2700/3400-3800) 44/27/25/38 °
Polarization Vertical
Power withstanding 60 W
MECHANICAL SPECIFICATIONS
Diameter / height 40.9 / 79.2mm (1.61” / 3.12”)
Weight 130 g (.29lbs)
Antenna Color / Material Black / PC/ABS C2950
4M cable SMA connector
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -40°to +85°C
Ingress Protection IP67
RoHS Compliant Yes
