EAD Product Categories

169 / 433 / 868 / 915 Antennas

Platch 868 MHz compact

Platch 868 MHz compact low profile antenna

The Platch 868 MHz compact low profile antenna is a reduced-height solution for pit lit, ground level and discreet applications

WCO-FLY 868 915 MHz

WCO-FLY 868 915 MHz waterproof compact omni antenna

The WCO-FLY 868 915 MHz antenna is a permanent mount, waterproof, compact omni antenna with an integrated IPEX (U.FL) cable

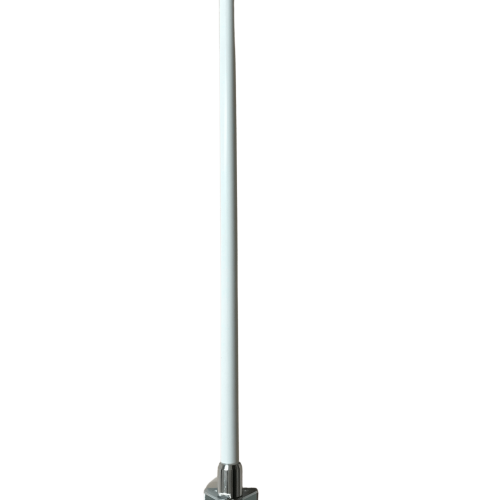

6.2 dBi 868 MHz Omni

6.2 dBi 868 MHz Omni Outdoor Fibreglass antenna

The 6.2 dBi 868 MHz Omni from EAD is a high gain and robust outdoor omni antenna for Helium LoRa and LP-Wan applications

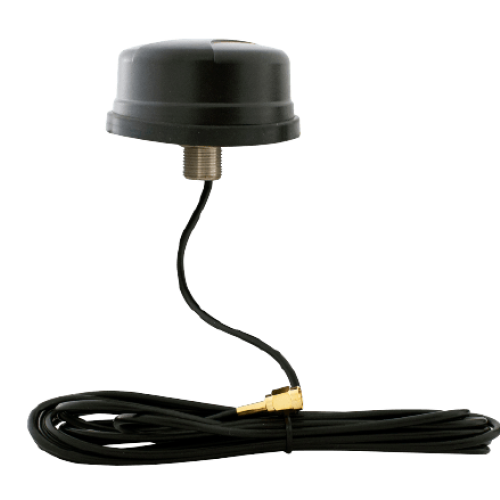

Button 868 915

Button 868 915 MHz Low Profile Puck Antenna

The Button 868 915 MHz compact low profile antenna is a discreet screw-mounted puck antenna designed for LoRa and licence free frequency bands

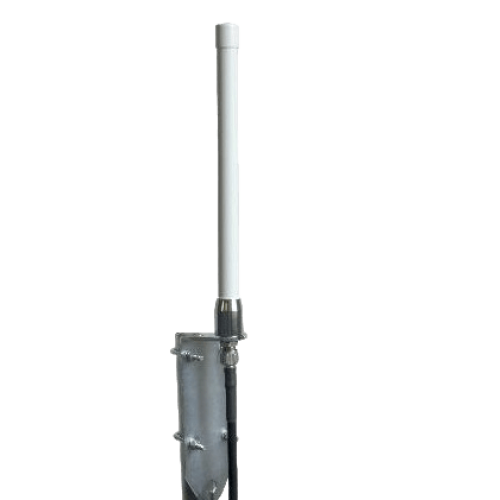

dual mount omni

DMO8684 – 868 MHz dual mount omni antenna

The DMO8684 is a 4.3 dBi 868 MHz dual mount omni antenna designed for continuous outdoor deployment for IoT, LoRa and Sigfox applications

915 MHz half wave dipole antenna

BKR915 – 915 MHz half wave dipole antenna

The BKR915 is a 915 MHz half wave dipole antenna ideal for 868 MHz terminals and devices that require a grounplane independent antenna

433 MHz quarter wave stub antenna ST

WS433 – 433 MHz quarter wave stub antenna ST

The WS433 is a 433 MHz quarter wave stub antenna ST designed for mounting on metal terminals and devices for ISM frequency band applications

868 MHz quarter wave stub antenna ST

WS868 – 868 MHz quarter wave stub antenna ST

The WS868 is a 868 MHz quarter wave stub antenna ST suitable for mounting to metal terminals and devices for ISM frequency band applications

433 MHz 1/4 wave stub antenna RA

WR433 – 433 MHz 1/4 wave stub antenna RA

The WR433 is a 433 MHz 1/4 wave stub antenna RA suitable for mounting onto a metal terminal or enclosure for ISM frequency band systems

WR868 – 868 MHz 1/4 wave stub antenna RA

The WR868 is a 868 MHz 1/4 wave stub antenna RA ideal for fixed and mobile ISM band terminals operating at 868 MHz frequencies.

169 MHz quarter wave whip antenna

SRW169 – 169 MHz quarter wave whip antenna

The SRW169 is a robust and flexible 169 MHz quarter wave whip antenna designed for direct terminal mount using the European ISM-band at 169 MHz.

433 MHz captive mount whip antenna

W433-FLY – 433 MHz captive mount whip antenna

The W433-FLY is a 433 MHz captive mount whip antenna based on a 1/4 wave groundplane dependent antenna design suitable for fixed and mobile terminals

868 MHz captive mount whip antenna

W868-FLY – 868 MHz captive mount whip antenna

The W868-FLY is a 868 MHz captive mount whip antenna based on a 1/4 wave groundplane dependent design for ISM band terminals

433 MHz quarter wave helical antenna

MH433 – 433 MHz quarter wave helical antenna

The MH433 is a 433 MHz quarter wave helical antenna designed for ISM band devices with metal enclosures or proximity groundplanes

MW433 – single band 433 MHz whip antenna

The MW433 is a single band 433 MHz whip antenna suitable for mounting on ISM band devices and terminals with a metal enclosure for a groundplane

single band 868 MHz whip antenna

MW868 – single band 868 MHz whip antenna

The MW868 is a single band 868 MHz whip antenna suitable for mounting on ISM band terminals with an available groundplane.

groundplane independent ISM band flexible antenna

FEW433 – groundplane independent ISM band flexible antenna

The FEW433 is a groundplane independent ISM band flexible antenna suitable for ISM band applications where performance and flexibility are important

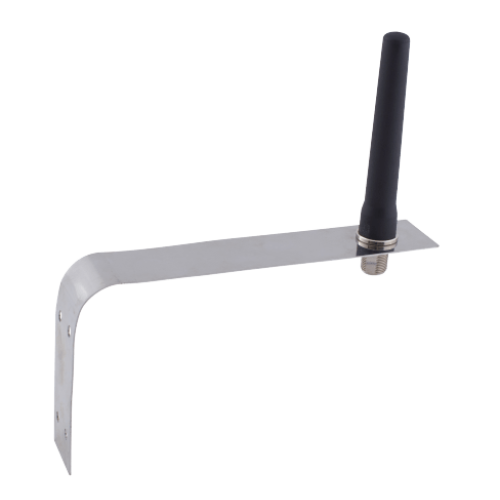

433 MHz compact outdoor wall mount antenna

WCO-433-WMB – 433 MHz compact outdoor wall mount antenna

The WCO-433-WMB is a 433 MHz compact outdoor wall mount antenna designed to offer access to ISM band 433 MHz applications

915 MHz Whip antenna

W915-RS – Single band 915 MHz Whip antenna

The W915-RS is a 915 MHz Whip antenna that requires a ground plane and is designed for ISM band 915 MHz devices, terminals and radios

169 MHz Helical Antenna

H169-SMA – 1/4 wave 169 MHz Helical Antenna

The H169-SMA is a 169 MHz helical antenna designed for us on ISM-band terminals especially in the European metering frequency band

868 MHz dipole antenna

BKR868 – 1/2 Wave 868 MHz dipole antenna

The BKR868 is an 868 MHz dipole antenna ideal for 868 MHz terminals and devices that require a grounplane independent antenna
